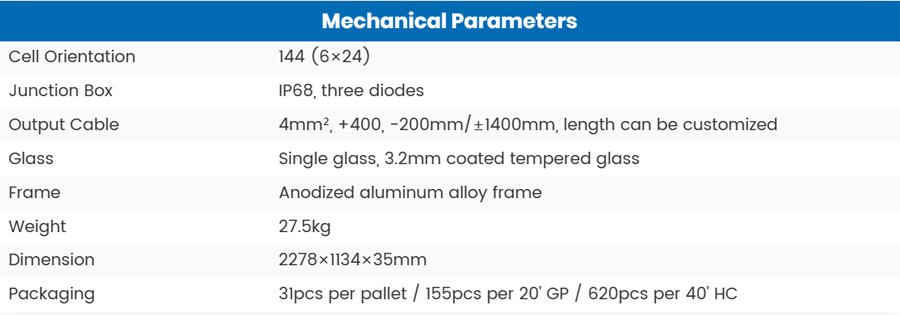

Cell Orientation

144(6×24)

Junction Box

IP68

Output Cable

4mm², +400, -200mm/±1400mm

length can be customized

Glass

Single glass, 2.0mm coated tempered glass

Frame

Anodized aluminum alloy frame

Weight

27.5kg

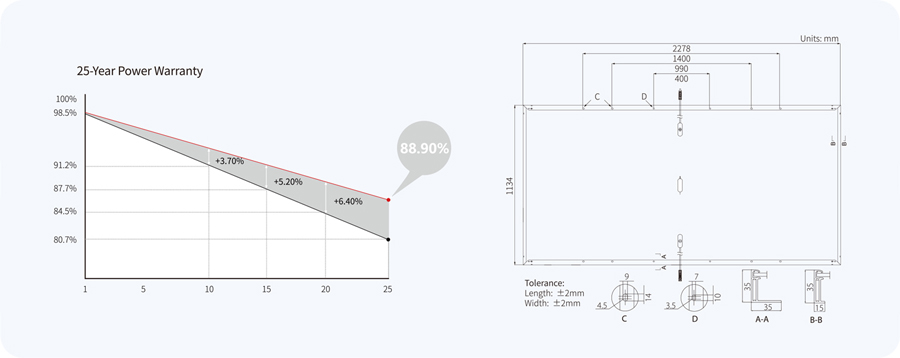

Dimensions

2278×1134×35mm

Packaging

31pcs per pallet/155pcs per 20' GP/620pcs per 40 'HC

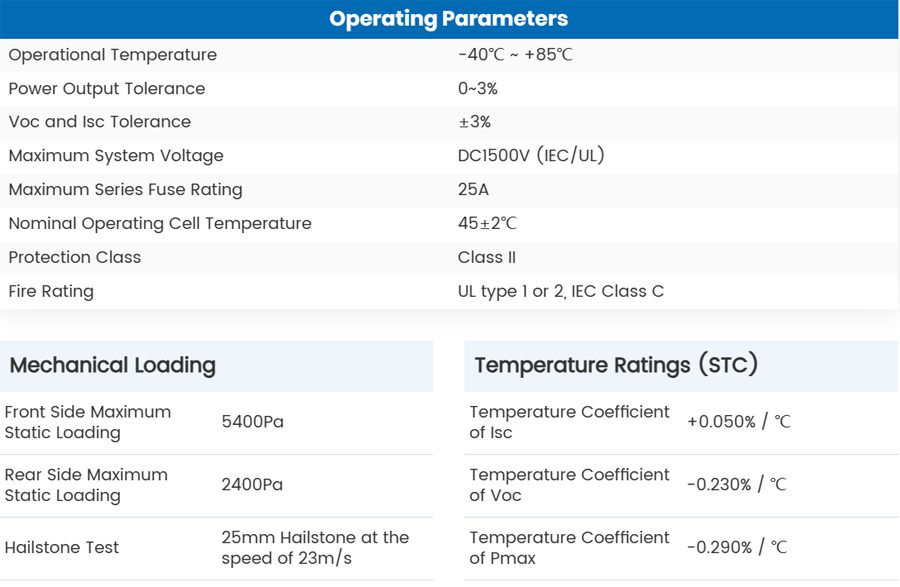

Operating Temperature

-40℃~+85℃

Power Output Tolerance

0~3%

Maximum System Voltage

DC1500V(IEC/UL)

Maximum Series Fuse Rating

25A

Nominal Operating Cell Temperature

45±2℃

Protection Class

Class Ⅱ
