Junction Box

IP68, 3 diodes

  Output Cable

4mm², +400, -200mm/±1400mm

length can be customized

  Glass

Dual glass, 2.0+2.0mm heat strengthened glass

  Frame

Anodized aluminum alloy frame

  Weight

31.8kg

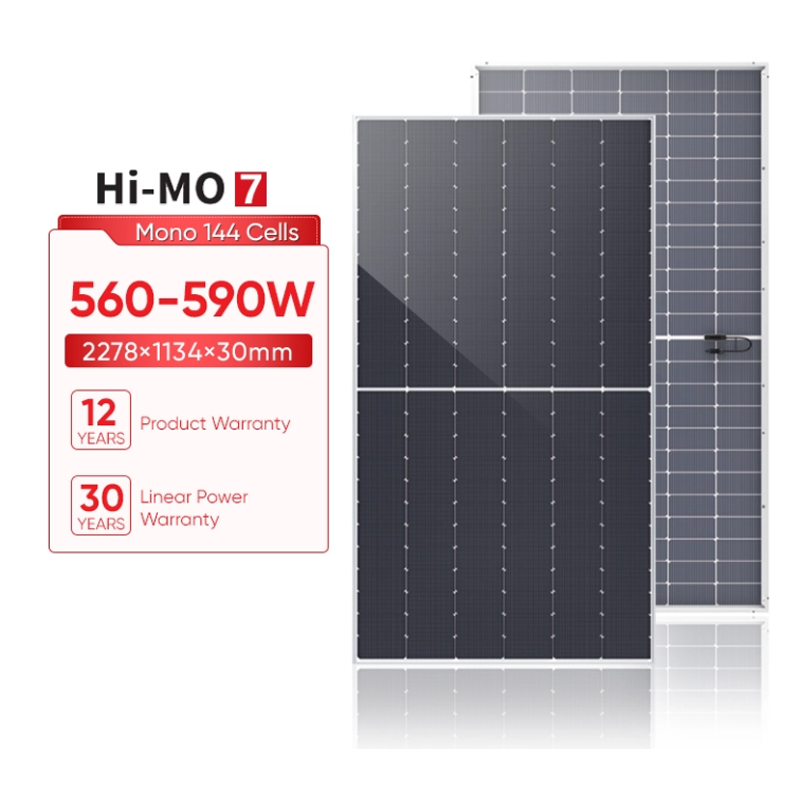

  Dimensions

2278×1134×30mm

  Packaging

36pcs per pallet/180pcs per 20' GP/720pcs per 40 'HC

  Operating Temperature

-40℃~+85℃

  Power Output Tolerance

0~3%

  Maximum System Voltage

DC1500V(IEC/UL)

  Maximum Series Fuse Rating

30A

  Nominal Operating Cell Temperature

45±2℃

  Protection Class

Class Ⅱ
